Really ? 37 minutes to install Cisco Hyperflex ?

Configuring the FI / UCS Manager

This week I went to a customer to install Hyperflex HX240 cluster with 4 nodes. Everything was already racked and stacked.

Hyperflex FI configuration
Hyperflex FI configuration

The first step is to configure the FI’s with ip addresses and a password. Just connect a console cable to the FI and your laptop. It’s easier to setup the FI-A and when the setup is finished then power on the FI-B. The procedure to setup a FI-B  is already described at :





You should have the correct Firmware for the FI’s. Via the CLI or GUI you can upgrade the FI to the correct firmware. I prefer GUI although via CLI is also very easy. You can find the Dependencies int the Release Notes of Hyperflex


Then lets configure the uplink ports and server ports. You don’t have to power on the servers. Discovery of the servers will be done automatically.

HX Servers are being discovered
HX Servers are being discovered

Installing Hyperflex

Now it’s time to start the Hyperflex Installer OVA. I am using VirtualBox on my laptop, but you can also use a VMWare server if you like. The image get it’s ip address via DHCP.

HX installer on VirtualBox
HX installer on VirtualBox

Ofcourse the FI’s should be also configured with the correct service profiles. Just click on the Configure UCS Manager button. (Not shown here). You only have to configure the FI Cluster IP address and credentials. The installer will take care of everything and configure VLAN’s, policies etc.

In Hyperflex installer 1.7.3 it’s possible to give a different name for the HX-INBAND-MGMT VLAN. When you change this, you will receive an error :


Installation Error due to wrong VLAN name
Installation Error due to wrong VLAN name

Although it’s possible to change the name DON’T DO IT !!! When you leave the name default the setup will work correctly. The “bug” will be fixed in HX 1.8 installer software.




After configuring the UCS Manager, you can configure everything for Hyperflex and deploy it. There are some nice installation guides at the Cisco Site

Just sit back and relax…


When the installer finished installing the software, it’s gonna create the HX Cluster.

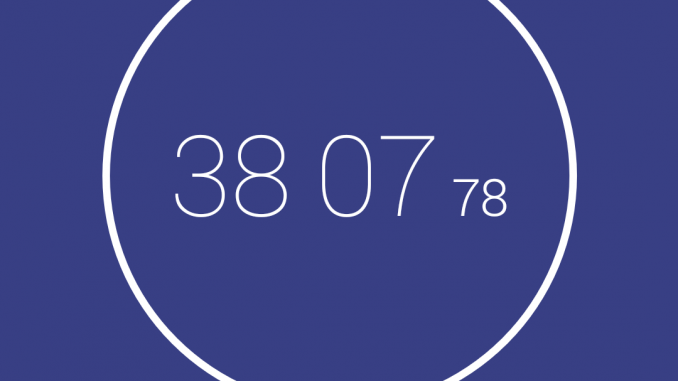

The verification AND deployment time is just over 38 minutes ! Not bad !!!



It’s working !

Now you can configure a datastore via the vCenter plugin. You can find the Hyperflex at the vCenter Inventory List.

Some demo and instruction videos will be uploaded at : Youtube Joost van der Made (Right now it’s spoken in Dutch, but it wil be in English !)



To see more information regarding the cluster you can also browse to :

https://<hyperflex cluster ip>/perf


Something that is already in the code, but still under Tech Preview is :

https://<hyperflex cluster ip>/ui

You will see some nice cool information about the HX Cluster.


Conclusion :

Yes, it’s possible to configure a Hyperflex cluster in about 37 minutes when all dependencies are in place. Cisco promised that the 1.8 installation will be even easier. I am already exited !



  1. Thanks for the great write up. I think it’s important to point out, though, that a 37 minute deployment is a bit misleading. Whenever deploying new hardware, it’s extremely likely you’ll want to upgrade to the latest and greatest software stack. For the HyperFlex, that means upgrading UCSM and NX-OS on the FIs first, then using the HyperFlex installer VM to deploy the HX data platform which will likely mean upgrading the firmware on the HX C-series servers, as well. After that, you’ll likely need to upgrade ESXi. All of this takes time. And if you don’t have vCenter in your environment, that deployment should be included, as well. Easily a day or more of work to make sure you hand off a ready-to-go system.

    All the best,


    • Hello Mike,

      You are totally right. It’s not only about the installing. For new customers, all the software is now at the right level (Except the NX-OS) and normally a fresh installation will take me 4 hours. 2 hours to gather all the information about IP addresses, setup the installer and install a fresh vCenter. 1 hour for the installation. (To fill in the fields for the first time) and 1 hour to give the customer a tour how they can create datastores, configure replication etc.

  2. Hello Joost,

    I need some advice on our hyperflex 3-node fresh deployment.
    We received these M4 HX220c nodes and FIs last year from Cisco as a promo. HXDP was 1.7.x I believe. We never turned it on because we were Hyper-V environment, but now we are planning to purchase vsphere essential plus kit to get these nodes up and running.

    I would like to setup the system with HXDP 2.6. I tried to research any documents that describes fresh install 2.6 from older equipment.

    Could you direct me to a right resource or explain me few steps to get the system up to 2.6?

    I guess Mike mentioned update NX-OS and UCSM on FI first. Then, do I just use 2.6 installer ova to get nodes install with HXDP? or do I need to update nodes firmware first?

    • Hello,

      Yes, please upgrade first the UCS-M and Nexus if needed.
      After that you can install the HXDP 2.6 on the system.

      It’s possible that the nodes are provided with ESXi 6.0. Don’t know if you want to upgrade this, but you can do that after the HX installation.

      • Thank you it worked out perfect!

        I do have another question. Since we only have 3 nodes and a set of FI 6248, we do not have leaf and spine design. We just have stacked 3850 catalyst switches. What would be the best way to connect FI to 3850? Can I form L3 LACP with two links from each FI A and B and 4 ports from stacked 3850 switch? VMs will be stay within Hyperflex nodes.

  3. I want to install Hyperflex 240c all flash with Ucs 6248c up, can you please share the ports connection setup details for this and and also manual step to configure.


  4. Please share the cable connection details from hyperflex to FI. And initial ip configuration of Hyperflex and FI to access console of both.
